AI Semiconductor Stacked Packages: Why the Grinding Process Became the Starting Point for Yield
In semiconductor packaging, controlling thickness was long regarded as simply grinding materials thin enough. However, with the arrival of high-performance artificial intelligence semiconductors that stack multiple chip layers, that standard has changed completely. Simply making the material thinner is no longer enough to ensure bonding reliability in stacked structures, and minute thickness variations in each layer can accumulate and affect the performance of the entire package. Today, a completely different level of grinding technology is required, one that can secure micron-level uniformity and flatness at the same time.

Why Thickness Uniformity Becomes a Prerequisite in Stacked Packages

In stacked package structures where dozens of chips are piled vertically, thickness variation in each layer is not merely a dimensional issue. The more precisely designed the package substrate structure is, as in FCBGA(Flip Chip Ball Grid Array) or WLCSP(Wafer Level Chip Scale Package), the more the uniformity of remaining thickness after grinding becomes a prerequisite for all subsequent processes.

In particular, WLCSP eliminates the substrate and mounts the chip directly onto the main board, so the impact of grinding precision appears immediately in electrical characteristics as the signal path becomes shorter. According to data from the United States Patent and Trademark Office(USPTO), the current target thickness for wafer backside grinding is about 300μm(microns), and it is expected to become even thinner in the 200 to 250μm range going forward. As the thickness target becomes lower, the allowable margin of error also becomes narrower, while the level of precision required in the process increases inversely. In this trend, the role of the grinding process is increasingly becoming a key variable in packaging quality.

The Two-Step Structure and Tolerance Standards of Precision Grinding

To understand the tolerance level required by precision grinding, a sense of proportion is more important than the numbers themselves. The allowable tolerance required in grinding for semiconductor manufacturing equipment is about ±2.54μm(microns), which is only a few dozenths of the thickness of a human hair, considering that human hair is about 70 to 100μm thick.

To reliably achieve this level of precision, commercial grinding systems operate two process stages in sequence.
- Coarse grinding stage: Rapidly removes material at a speed of about 5μm per second.
- Fine grinding stage: Reduces the speed to 1μm per second or less to secure surface roughness and thickness uniformity.
Reducing speed is the core principle for increasing precision, and how precisely the transition point and conditions between the two stages are controlled is the key factor that determines final yield. Equipment configuration that combines a diamond wheel with a high-precision stage is the core hardware that reliably supports this transition process, and the completeness of equipment design is directly revealed under conditions that must satisfy both fine tolerance control and repeatable reproducibility.

How PKG Grinder Responds to On-Site Conditions

When introducing grinding equipment at an AI semiconductor packaging site, the first practical question is “which package types can it support”. In many cases, a single production line must handle multiple packages at the same time, including FCBGA, WLCSP, and QFN/DFN(Quad Flat No Lead), while the target thickness required by customers differs by product.

Huvics PKG Grinder is designed for these on-site conditions with Full Auto A/B types and Manual type options, allowing flexible selection according to the automation level of the production line and the characteristics of the product. Processing uniformly and precisely to the thickness customers require is not simply a matter of equipment specifications. It means the equipment must allow settings that reflect actual process conditions and package structures.

The requirement to maintain stable yield even during high-speed processes in manufacturing sites that handle ultra-precision components, such as camera modules or autonomous driving sensors, directly shows how important repeatable reproducibility and in-process consistency are for equipment. As stacked structures become more complex and target thickness becomes thinner, the range of precision that grinding equipment must handle also expands. This is where the significance of PKG Grinder in this process becomes clear.

The complexity of stacked structures required by AI semiconductors has transformed the grinding process from a simple post-processing step into the starting point of quality. The ability to repeatedly achieve micron-level tolerances ultimately shows where the reliability and yield of the entire package are determined. As thickness targets become thinner and the number of stacked layers increases, the demand for grinding precision will continue to rise.

Huvics is an advanced technology company that develops and manufactures automation equipment and
production systems across the semiconductor, LED, Mobile, and Cosmetic industries.
With top-level talent and continuous technological innovation, we support customers in improving productivity and
securing quality competitiveness.

Huvics Contact Information

Phone: 031-374-8285
Email: cdpark@huvics.com
2026-09-30

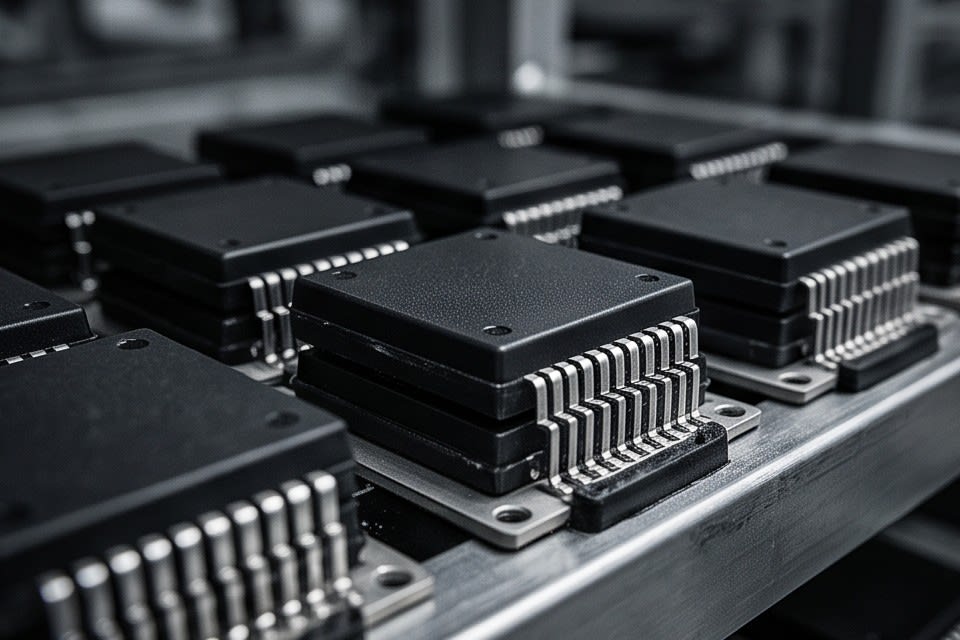

3 Process Points That Prevent Semiconductor Defects – Key Summary of Grinding, Lamination, and Cleaning

If defects are found in parts after cleaning, the loss has already started somewhere in the process. Thickness variation in the grinding stage, uneven adhesion in the tape attachment process, contamination residue remaining after cleaning — if even one of these three issues is overlooked, yield loss and rework costs can grow rapidly. The later a problem appears in the downstream process, the more correction costs increase exponentially, and delayed delivery can even undermine customer trust.

Thickness Uniformity in the Grinding Process Determines Yield

In the semiconductor packaging process, thickness uniformity is one of the most sensitive variables that determines yield. Modern package structures such as WLCSP wafer level chip scale package, FCBGA, and QFN are based on vertical chip stacking, and if the thickness after grinding is even slightly uneven, stacking chips on top becomes impossible.

According to analysis by AE Research, the thickness uniformity tolerance required in semiconductor grinding processes is less than 1 micron, and chips outside this standard immediately lead to defects in the stacking process. This is why micron level precision grinding using diamond wheels is not simply a machining technology, but a prerequisite for package reliability. To maintain this level of tolerance consistently even in high speed processes, stage precision and consistent grinding conditions must both be secured. Keeping thickness variation within the allowable range is the key to high yield production.

Integrated Lamination Processes Prevent Error Accumulation

The more a process is divided into multiple stages, the more errors accumulate between each stage. When tape attachment, UV curing, and expanding are performed on separate equipment, alignment can shift or adhesion conditions can vary during transfer between processes.

The laminator system from Huvics structurally prevents this issue by integrating key processes from the expander to UV curing within a single system. In the UV curing stage, uniform irradiation intensity is especially important. Uneven UV irradiation causes film shrinkage and adhesion variation, increasing the risk of damage in the subsequent chip separation process. In contrast, when UV curing is performed under controlled conditions, tape adhesion weakens predictably, allowing chips to be separated without damage.

A UV curing system that can selectively apply lamp and LED methods provides the flexibility to respond according to product type and production volume. Connecting processes into one continuous flow and reducing the number of transfers is itself implemented as a way to secure both shorter takt time and process stability.

The Cleaning Process Is the Final Gateway to Quality

No matter how precise the machining and attachment processes are, final quality becomes unstable if contaminants remaining on the surface are not removed. In camera module manufacturing sites, if residual flux and contamination particles generated during the reflow process after CSP assembly are not removed through cleaning, ionic residues cause corrosion and directly affect module performance.

In production environments that handle components with diverse shapes and materials, such as VCM motors, image sensors, and trays, a single cleaning method makes it difficult to respond to all types of contamination. The cleaner system from Huvics removes surface contamination particles step by step through a multi stage cleaning method that combines micro bubbles, water jet, and air knife, and it also includes an oven drying function to remove residual moisture after cleaning.

Full auto and manual methods can be selected, allowing flexible application depending on the line configuration. In automated configurations, worker intervention between processes is minimized, reducing the risk of contamination reattachment. In the field, results show that as the defect rate in the cleaning stage decreases, the downstream rework rate also drops.

Micron level precision in the grinding process, an integrated flow in the lamination process, and multi stage contamination removal in the cleaning process — these three elements are not separate technologies, but one connected line of defense against semiconductor defects. Weakness in any one stage is transferred as a burden to the next stage, and the structure in which it is ultimately confirmed as a defect in final inspection will inevitably repeat unless the entire process is designed with precision. Controlling variation at each point in the process is a far more cost effective way to protect quality than tracing the cause after a defect occurs.

Huvics is an advanced technology company that develops and manufactures automation equipment and
production systems across the semiconductor, LED, Mobile, and Cosmetic industries.
With top talent and continuous technological innovation, we support customer productivity improvement and
quality competitiveness.

Huvics Contact

Phone: 031-374-8285
Email: cdpark@huvics.com

2026-09-28

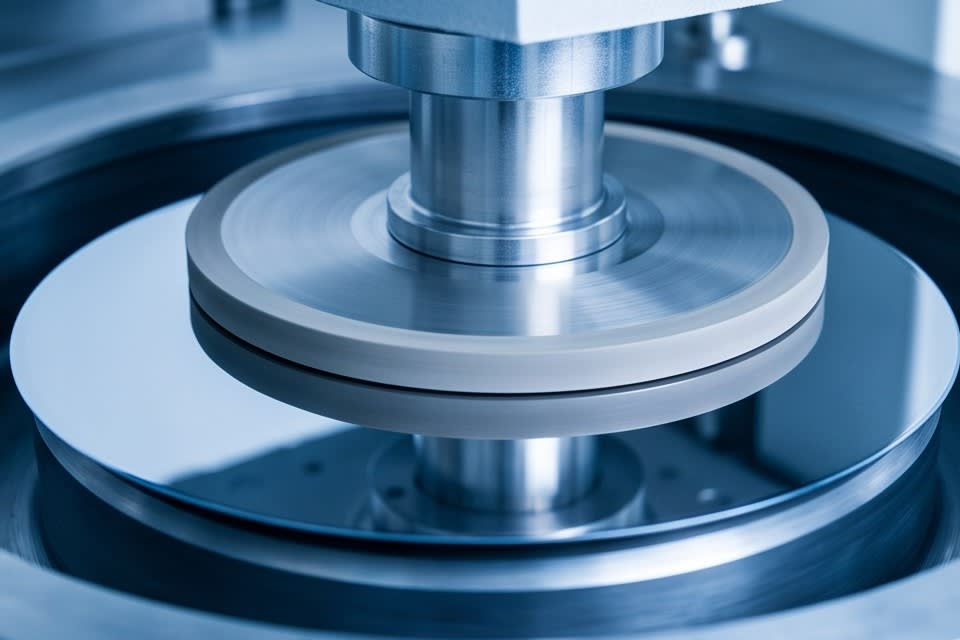

How Are You Managing the Grinding, Lamination, and Cleaning Processes That Determine Semiconductor Yield

When working on a semiconductor line, even a single thickness deviation can bring down an entire day of yield. The process design is correct, and the equipment is operating normally, yet the finished thickness varies little by little. If this subtle difference is ignored, it returns as a bigger issue in the next process, and correcting it requires stopping the entire line. Even though this situation repeats itself, many sites still run the same process in the same way.

Why Thickness Uniformity Determines the Yield of Stacked Packages

In structures where dozens of chips are stacked vertically, such as AI semiconductors and high-performance memory, thickness variation in each layer is not merely a dimensional issue. As layers are stacked, deviations accumulate, and the reliability of the final package is directly affected by that accumulated value.

According to industry standards, the allowable range for thickness uniformity in production wafers is around 0.5~2.0 micrometers, and fields that require high precision, such as 5G processors and AI accelerators, require control within 0.3 micrometers. Standards stating that tolerance must remain within 1 micrometer even when the final thickness is reduced to around 20 micrometers are also being applied in actual processes.

To implement this level of precision reliably, both the stage precision of grinding equipment and the control level of the diamond wheel must be supported together. Maintaining uniform package thickness goes beyond improving the completeness of a specific process and becomes a prerequisite that determines the yield of all subsequent assembly stages. As the number of stacked layers increases, managing variation in the initial grinding stage is becoming a decisive factor in the quality of the entire process.

How an Integrated Laminator Structure Reduces Process Bottlenecks

When tape mounting and UV curing are operated as separate processes on the manufacturing floor, transfer time and waiting sections occur between the two pieces of equipment, and quality variables can enter during that gap. The more separated the processes are, the more management points are created, and it becomes harder to identify where bottlenecks occur.

The integrated laminator structure, which processes everything from expansion to UV curing within a single line, emerged as a way to solve this issue. Huvics’ one-stop laminator system combines tape mounting and UV curing into one continuous flow, eliminating transfer sections between processes and reducing overall takt time. The LED-based UV curing method maintains stable adhesive strength while preventing adhesive defects that may occur during complex packaging assembly processes.

In the industry, comparative analyses indicate that inline UV curing systems are more efficient in high-capacity continuous production environments that require throughput of more than 500 units per hour. A structure that provides both Semi Auto and Manual options makes it possible to configure the line flexibly according to product type and production scale. How simply the process is designed becomes the key decision criterion for improving both yield and productivity.

Why the Precision of Cleaning Technology Becomes the First Line of Defense for Final Quality

For components where surface cleanliness is directly linked to performance, such as camera modules and autonomous driving sensors, even a microscopic particle invisible to the naked eye can lead to a defect judgment. In semiconductor tray cleaning processes as well, residual contaminants repeatedly become sources of contamination in the next process.

Huvics’ cleaning system uses a multi-stage structure that combines microbubbles, water jets, and air knives step by step, sequentially treating contaminants with various properties that are difficult to remove with a single cleaning method. In the industry, research findings have accumulated showing that micro- and nanobubble cleaning technology using bubbles with a diameter of 0.1 micrometers or less is effective in removing organic matter from semiconductor surfaces, and there are also cases where particle removal efficiency of 92.5% was confirmed in jet flow cleaning using acoustic bubble array technology.

As the applications are diverse, including camera modules, sensors, VCM motors, and trays, the system is designed for process completeness by incorporating an oven drying function that removes residual moisture after cleaning. Configurations with Full Auto and Manual options make it possible to adjust the automation level and maintenance method to suit the production environment.

Although cleaning may appear to be the final process, field data repeatedly confirms that its results become the first line of defense for final quality. This is where the precision of technology that captures a single particle determines the meaning of finished product reliability.

The minute thickness deviation that first caused the line to stop is, in fact, not a gap in process design but the result of precision levels at each stage failing to work together. When grinding uniformity, lamination integration efficiency, and multi-stage cleaning completeness are connected as one flow, the causes of repeated defects finally disappear. The industrial standard created by ultra-precision machining is determined not by the performance of a single piece of equipment, but by how tightly the entire process is connected.

Huvics is an advanced technology company that develops and manufactures automation equipment and
production systems across the semiconductor, LED, Mobile, and Cosmetic industries.
With top talent and continuous technological innovation, we support customers in improving productivity and
securing quality competitiveness.

Huvics Contact

Phone: 031-374-8285
Email: cdpark@huvics.com

2026-08-24
The Value of Precision Cleaning in Semiconductor Yield and the Process Innovation Strategy of the Huvics One Stop Laminator
An industry saying states that the success or failure of semiconductor manufacturing is determined not at the beginning of a massive process, but by the level of cleanliness at the final stage. Today, that message carries even greater weight. At a time when even invisible microscopic contamination can undermine the reliability of an entire product, precision cleaning has become the final safeguard that determines production yield, going far beyond a simple auxiliary measure.

To block unnecessary exposure within complex assembly lines and reach the highest level of manufacturing efficiency, we will explore how the process integration strategy presented by the Huvics one stop laminator system can resolve chronic bottlenecks in semiconductor manufacturing sites and maximize competitiveness.

The Importance of Precision Cleaning in Determining Semiconductor Yield

Core Value in Back End Processes

The semiconductor manufacturing process is often described as a continuous series of fine processes, but in reality, the back end stage at the peak of that process is the most sensitive section that determines yield. Just before a wafer fully takes shape as a chip, the introduction of even a single microscopic contaminant can cause critical damage to the reliability of the entire product.

For this reason, today precision cleaning systems have become a core process that fundamentally blocks defect factors and guarantees final product quality, rather than merely serving as an auxiliary method for removing foreign substances. In increasingly complex and sophisticated semiconductor structures, it is no exaggeration to say that cleanliness in the final stage is the last line of defense for measuring product completeness.

Strengthening Production Efficiency and Competitiveness

In particular, at sites where advanced equipment such as the Huvics one stop laminator is introduced, precision cleaning acts as a solution that removes chronic bottlenecks in the manufacturing process. This process goes beyond maintaining cleanliness and becomes a pivotal point that makes the entire production line flow more flexibly and dramatically improves final yield.

Only chips completed in the cleanest possible state can meet the strict requirements of the market, and this precision cleaning strategy becomes the most reliable foundation for maintaining manufacturing competitiveness in the rapidly changing global semiconductor market.

Technological Innovation of the Huvics One Stop Laminator

Perfect Control of Potential Risk Factors

The reason the Huvics precision cleaning system receives outstanding evaluations in the field is that it goes beyond the technical level of removing visible foreign substances. Inside the manufacturing environment, microscopic defect factors that are difficult to detect with the naked eye are constantly present, and the Huvics system detects these potential risk factors in advance and prevents them before they occur, ensuring product quality uniformity at a level close to perfection.

The core technologies implemented by Huvics in the latest semiconductor assembly lines are as follows.
- Improving process efficiency by applying an LED based UV curing process
- Operating the precision cleaning process and UV curing stage in an organically integrated manner
Process Efficiency Through Integrated Equipment

In the past, each process was separated, resulting in frequent product movement, and the gaps and unnecessary exposure generated during that movement often caused takt time delays and potential contamination. However, Huvics has overcome these physical limitations by processing everything from tape mounting to expander operation and precise UV curing within a single piece of equipment.

This integrated method, which controls residues in real time and achieves optimal adhesion strength, strengthens product durability while minimizing unnecessary movement, thereby maximizing process stability. From the producer perspective, it provides a powerful tool to minimize the probability of defects even within complex assembly stages, which directly leads to a dramatic improvement in overall production efficiency.

Huvics is proving directly in the field that precision cleaning is a core strategic asset that supports the stability of the entire manufacturing process, going beyond simple cleanliness maintenance.

A Strategic Choice for Manufacturing Innovation

Ultimately, the competitiveness of semiconductor manufacturing depends not on the act of cleaning chips itself, but on how perfectly invisible uncertainty can be controlled. True manufacturing innovation begins only when precision cleaning is redefined from a simple maintenance concept into a strategic asset that integrates the process flow and secures quality uniformity.

As proven by the integrated equipment of Huvics, the choice to transform process complexity into efficient simplicity will become the most powerful weapon for protecting irreplaceable quality value in a rapidly changing market. Now is the time to remove the invisible contamination factors hidden in your production line and experience a higher level of yield completeness.

Huvics is an advanced technology company that develops and manufactures automation equipment and
production systems across the semiconductor, LED, Mobile, and Cosmetic industries.
With top talent and continuous technological innovation, we support customers in improving productivity and
securing quality competitiveness.

Huvics Contact Information

Phone: 031-374-8285
Email: cdpark@huvics.com
2026-08-12

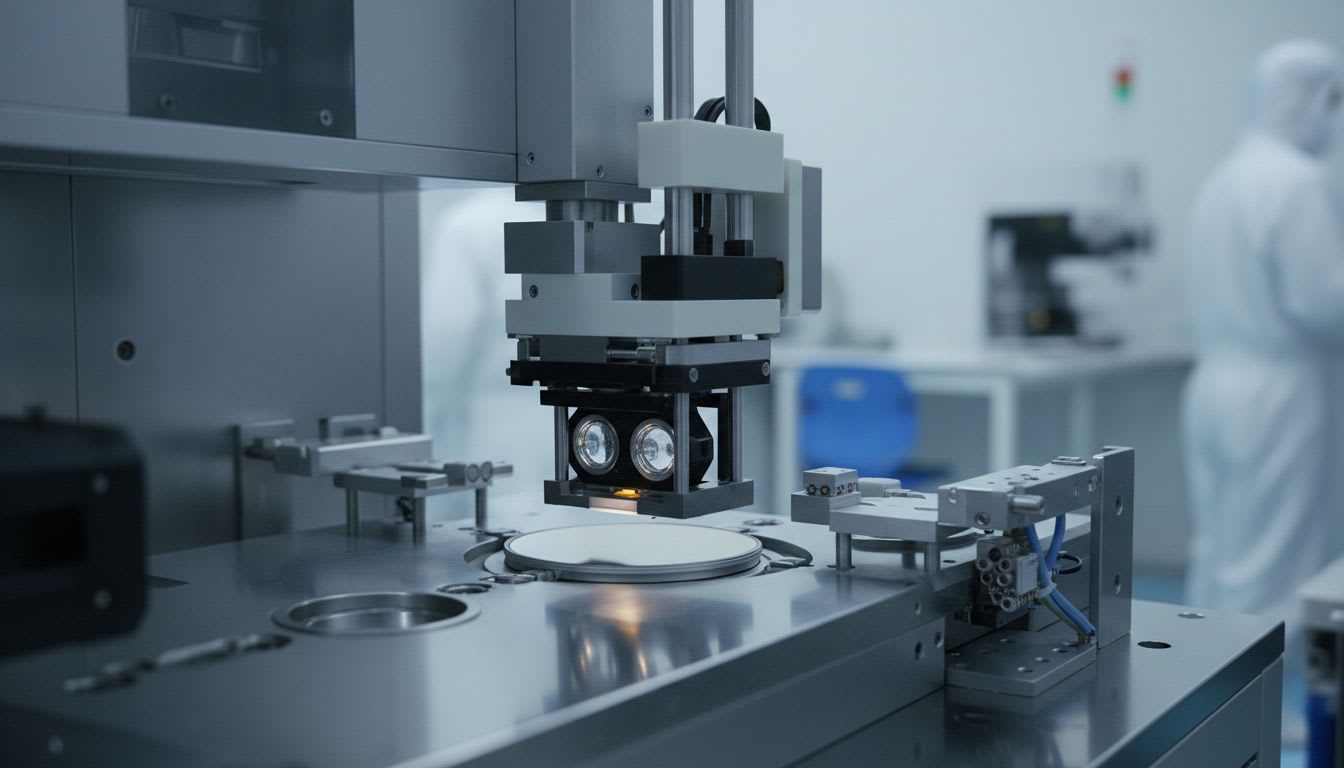

Key Technologies of the Huvics One-Stop Integrated System That Maximizes Semiconductor Cleanroom Process Efficiency
